Samputensili

Samputensili Logo

About Samputensili

SU America, a unit of Samputensili S.p.A., offers a complete range of manufacturing solutions for a wide variety of gear technology requirements.

Web: www.sampspa.com

Gear Manufacturing Tools from Samputensili

Generating Grinding Machines

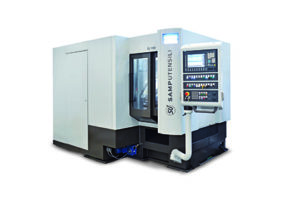

G 160 Gear Grinding Machine

TheSamputensili G 160 gear grinding machine is ideal for automotive gear manufacturing applications requiring high efficiency, low maintenance, reliability and fast production.Samputensili G 160 gear grinding machine is ideal for automotive gear manufacturing applications requiring high efficiency, low maintenance, reliability and fast production.

Generating Grinding Machines

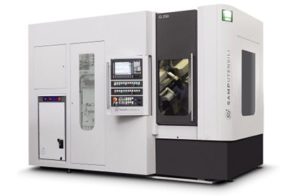

G 250 Gear Grinding Machine

Innovative, compact, and extremely flexible, this machine is based on the best-selling Samputensili S 250/400 G.

Max Workpiece Ø:  250 mm
Module mn:  0.5 – 7.0
Max Workpiece length:  550  mm
Max Face width:   380 mm

Generating Grinding Machines

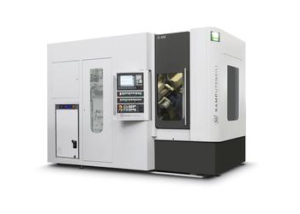

G 450 Grinding Machine

This machine has been developed to be innovative, compact, and extremely flexible for low cycle times and top-quality gear production.

Max Workpiece Ø: 450 mm
Module mn: 0.5 – 7.0
Max Workpiece length: 550 mm
Max Face width: 380 mm

Generating Grinding Machines

GT 500 H Grinding Machine

For small, medium & large batch manufacturing, the GT 500 H is designed for profile and generating grinding of spur and helical external gears as well as other profiles that can be generated by hobbing.

Max Workpiece Ø: 400 mm
Module range: 6.0 mm
Max Profile depth: 1.0 – 20.0 mm

Generating Grinding Machines

SG 160 SKYGRIND - Dry Grinding Machine

The SG 160 SKYGRIND is the world’s first gear dry grinding machine. This state of the art process removes the need for cooling oils during the hard finish grinding of the gear after the heat treatment.

Profile

GT 500 H Grinding Machine

For small, medium & large batch manufacturing, the GT 500 H is designed for profile and generating grinding of spur and helical external gears as well as other profiles that can be generated by hobbing.

Max Workpiece Ø: 400 mm
Module range: 6.0 mm
Max Profile depth: 1.0 – 20.0 mm

Profile

G 250 Profile Grinding Machine

Innovative, compact, and extremely flexible, this machine is based on the best-selling Samputensili S 250/400 G.

Max Workpiece Ø:  250 mm
Module mn:  0.5 – 7.0
Max Workpiece length:  550  mm
Max Face width:   380 mm

G 375 H Profile Grinder
Profile

G 375 H Profile Grinder

The G 375 H Profile Grinding Machines are Modular-structured, extremely flexible machines.

  • Max Workpiece Ø: 375 mm
  • Module range: 15 mm
  • Helix angle positioning: +/- 90°
Gp 500 H Profile Grinding Machine
Profile

GP 500 H Profile Grinding Machine

The GP 500 H Profile Grinding Machine has an additional CNC axis allows work with two separate spindles.

  • Max Workpiece Ø: 500 mm
  • Max Workpiece length: 1250 mm (2150 HL)
  • Module range: 0.5 – 15 mm
  • Max Profile depth: 35 mm
Star SU Profile Grinding
Profile

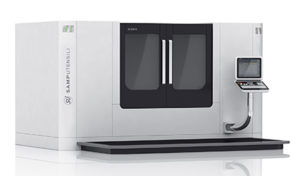

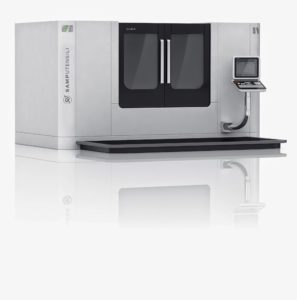

G 500 H Profile Grinding Machine

The G 500 H Profile Grinding Machine is an extremely flexible gear and screw grinding machine.

  • Max Workpiece Ø: 500 mm
  • Max Workpiece length: 1250 mm (2150 HL)
  • Module range: 0.5 – 22 mm
  • Max Profile depth: 53 mm

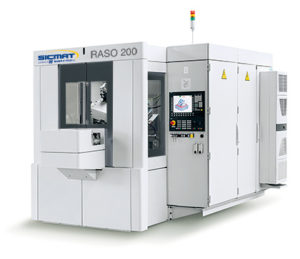

Raso 200 Gear Shaving Machine
Gear Shaving

SICMAT RASO 200 Gear Shaver

Thanks to its “lathe-like” structure and its compact design, RASO 200 has the same stiffness of larger machines. Cycle speed and flexibility are at the top.

RASO 250 TP GEAR SHAVING MACHINE
Gear Shaving

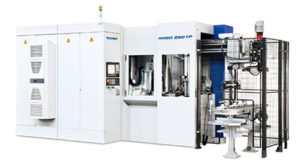

SICMAT RASO 250 TP Gear Shaving Machine

The main features of RASO 250 TP are modular concept and construction, exceptionally high rigidity, synchronized tool/workpiece axes, and easy accessibility for maintenance and operation.

Raso 400 Gear Shaving Machine
Gear Shaving

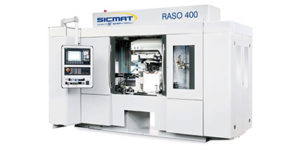

RASO 400 Gear Shaving Machine

Thanks to its large, open “C” structure, RASO 400 is the most versatile shaving machine. It can shave gears in very different sizes, even big gears and long shafts.

Gear Shaving

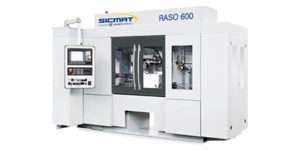

RASO 600 Gear Shaving Machine

The RASO 600 is the ideal machine for gears with large modules and face widths, such as those for tractors, earthmovers, and industrial gears. Chamfering/deburring operation can be integrated as an option.



GR 500 H Rotor and Worm Grinding Machine
Rotor and Worm

GR 500 H Rotor and Worm Grinding Machine

The GR 500 H rotor and worm grinding machine is designed for small to medium lot high precision manufacturing.

  • Max Workpiece Ø: 400 mm
  • Module range: 22.0 mm (35.0 opt.)
  • Max Profile depth: 53 / 80 mm
GRX 500 H Rotor and Worm Grinding Machine
Rotor and Worm

GRX 500 H Rotor and Worm Grinding Machine

GRX 500 H Rotor and Worm Grinding Machine has small to medium lot high precision manufacturing capabilities.

  • Max Workpiece Ø: 400 mm
  • Module range: 22.0 mm (35.0 opt.)
  • Max Profile depth: 50 / 80 mm
GW 3600 H Rotor and Worm Grinding Machine
Rotor and Worm

GW 3600 H Rotor and Worm Grinding Machine

GW 3600 H Rotor and Worm Grinding Machine uses High-precision grinding of long screws and is available in different versions, depending on the length and profile depth of your workpieces.

  • Max Workpiece Ø: 250 mm
  • Max Workpiece length: 3800 mm
  • Module range: 16.0 mm
  • Max Profile depth: 40 mm

Cutting Tools from Samputensili

Samputensili

Gear Shaving Cutters

From design to delivery, we carry a wide range of Samputensili shaving cutters including transverse, diagonal, underpass, plunge, internal/external shaving. All tools are supplied with inspection and lead test charts.

Comprehensive Machine Tool Supply & Services

Contact Star SU today to learn more about our comprehensive gear machine tool supply and services from industry experts. You can also browse our online catalog of Gear Manufacturing and Tool Grinding machines, our extensive line of Cutting Tools, or learn about our Complete Tool Services.
